Беспроводная система мониторинга температуры
Применение
  • Государственная сеть
  • Дата центр
  • Муниципальное строительство
  • Химическая промышленность
  • Индустрия дорожного движения
  • Промышленно-горное предприятие
  • Нефть
  • Металлургическая промышленность

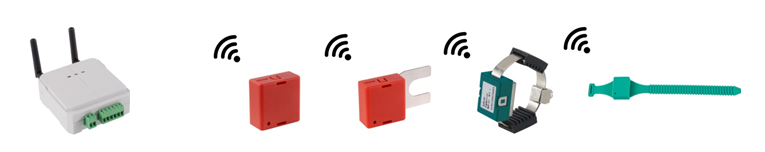

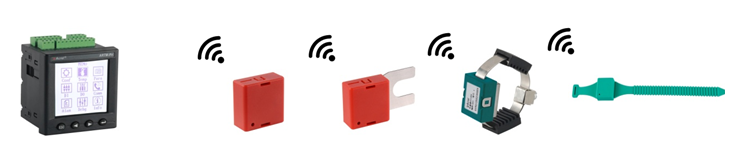

Структура



Основные функции

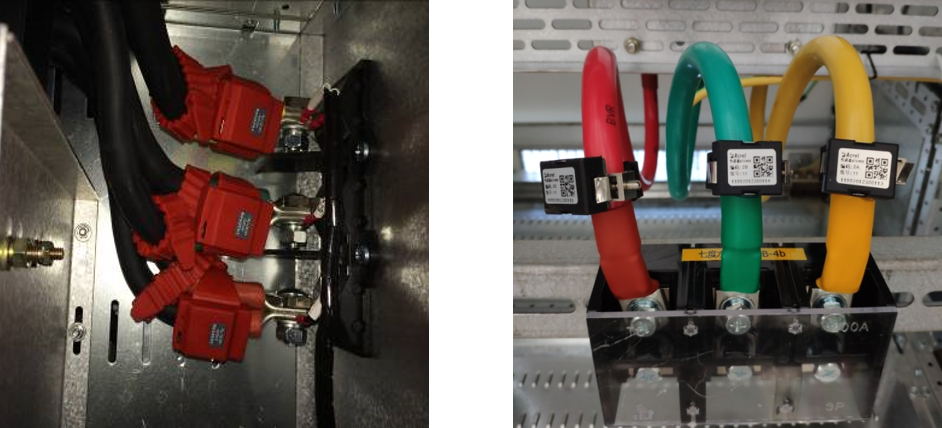

Wireless monitor temperature

Temperature display

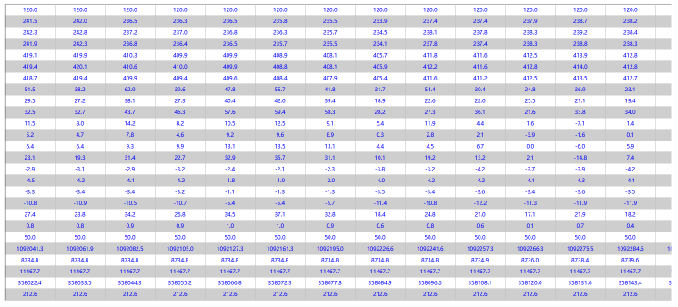

Report

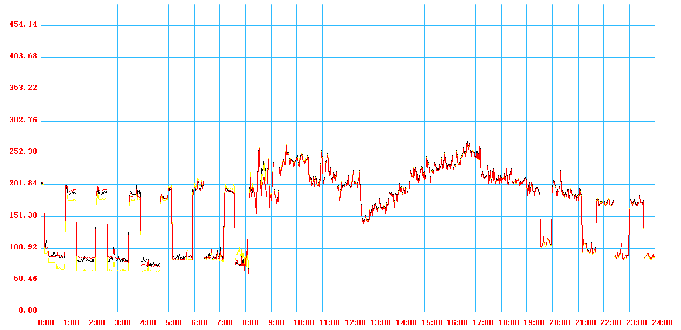

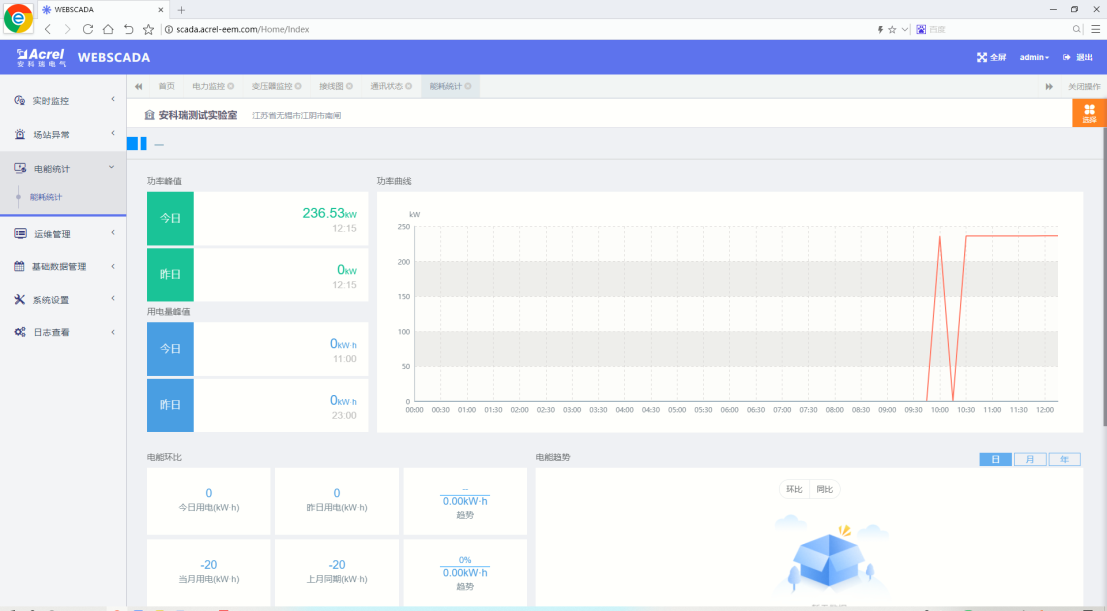

Curve

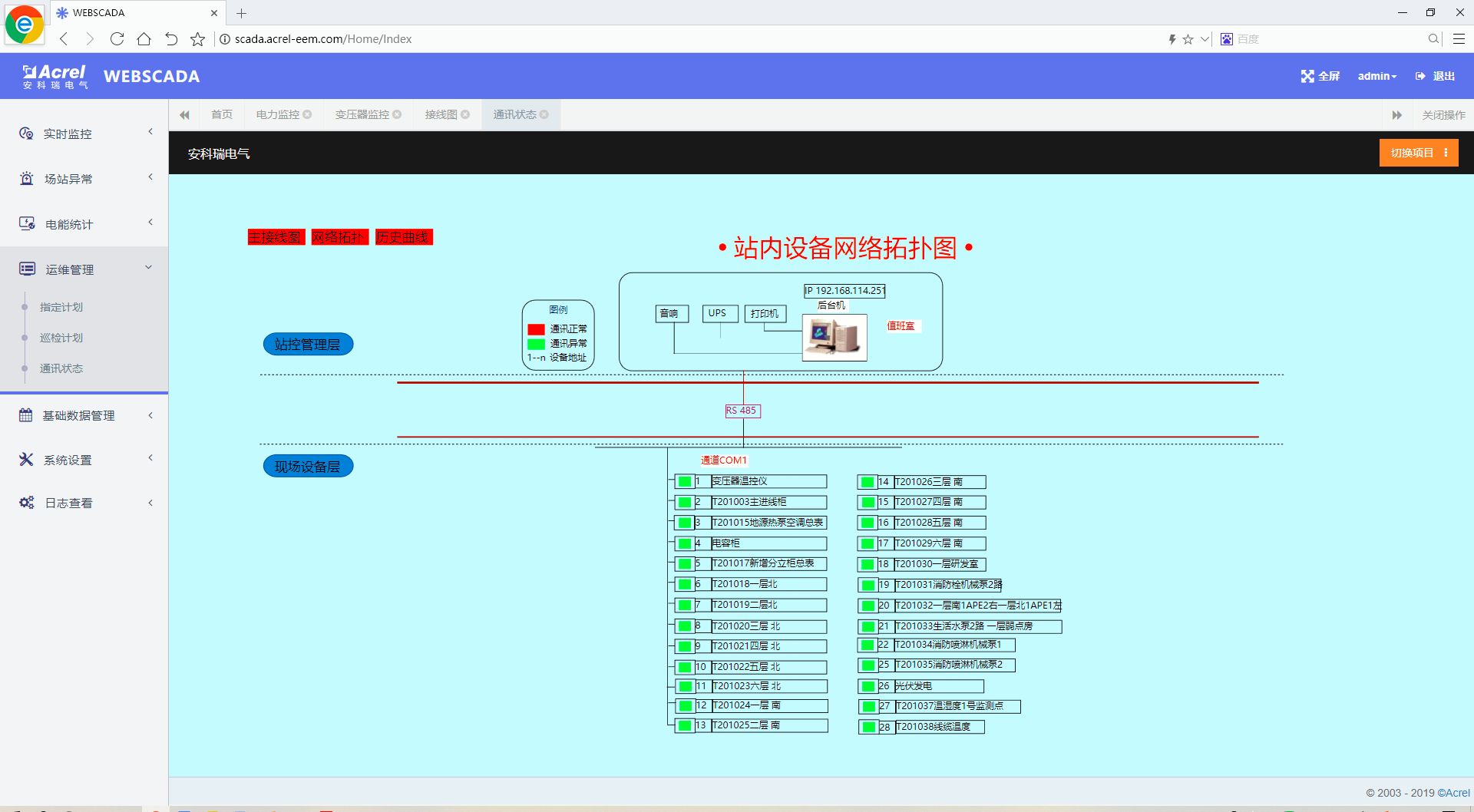

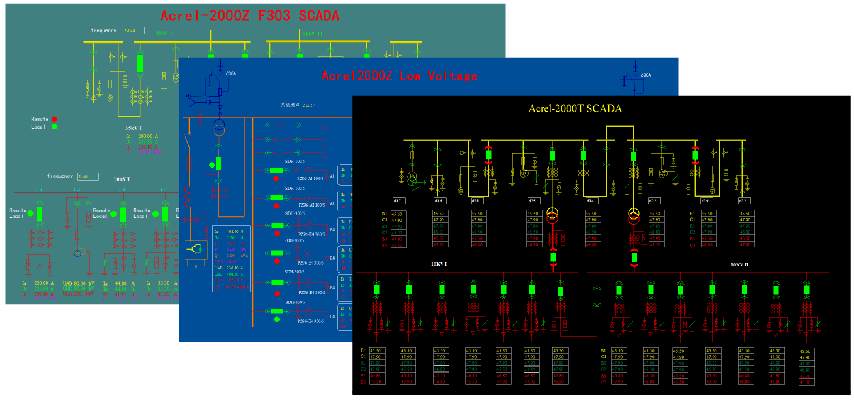

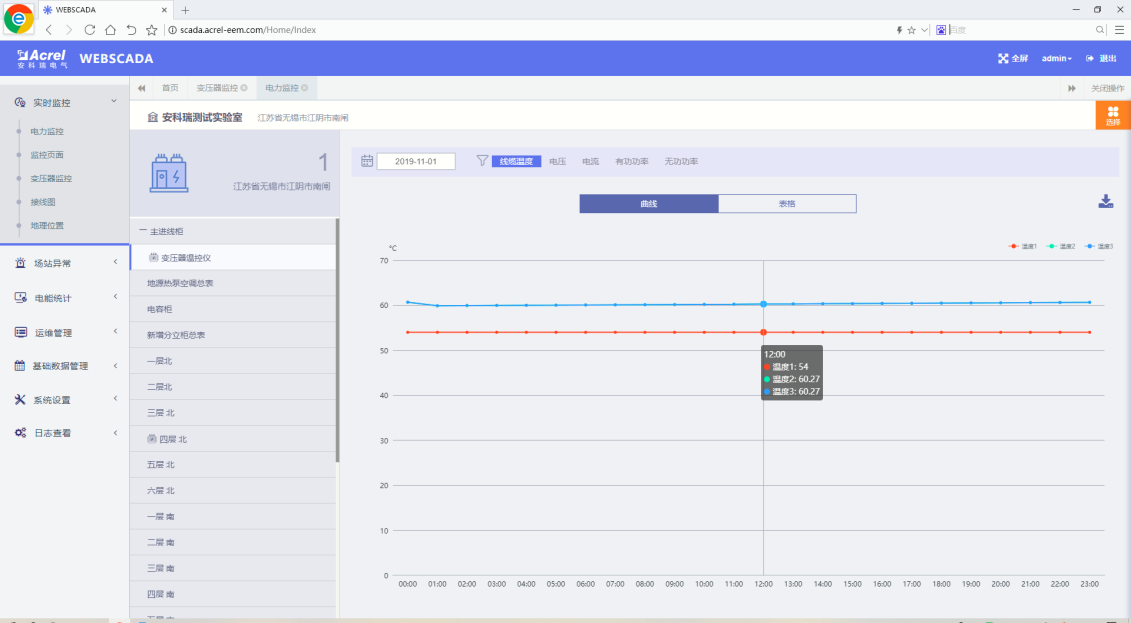

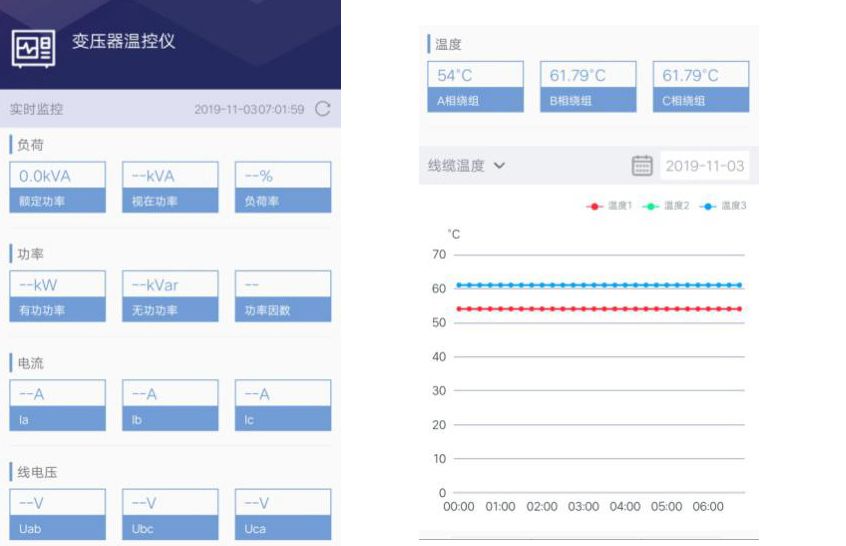

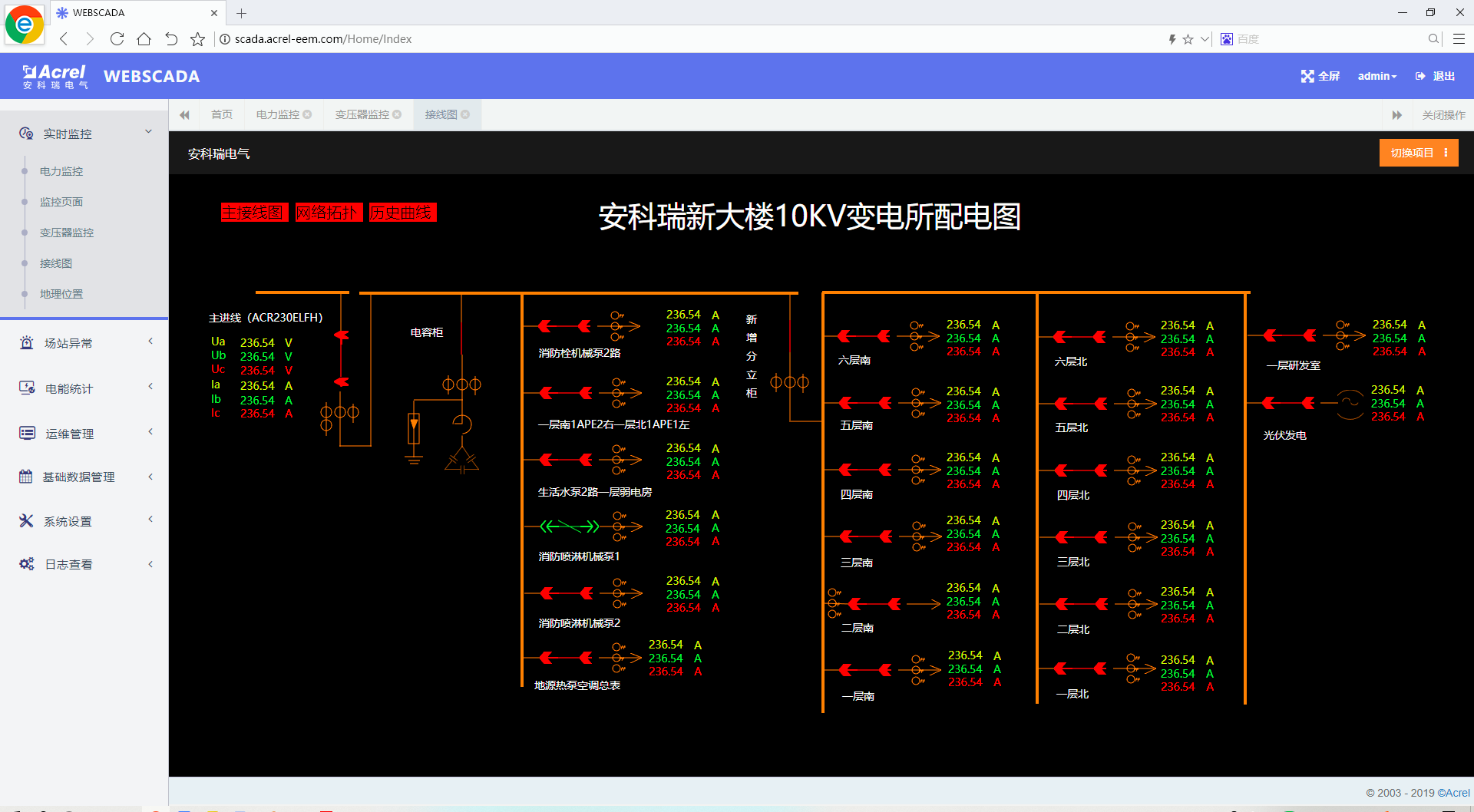

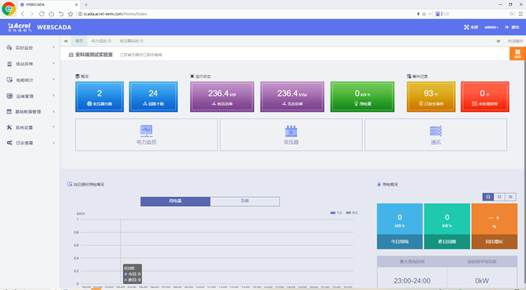

Web/APP

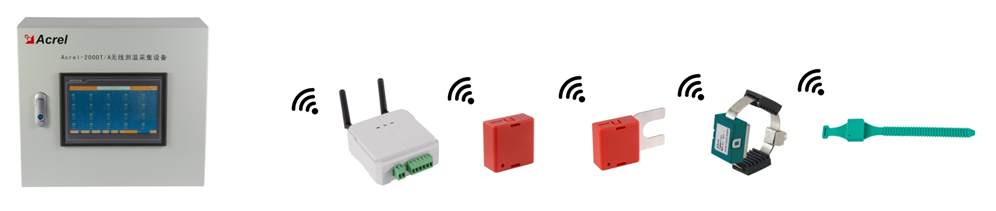

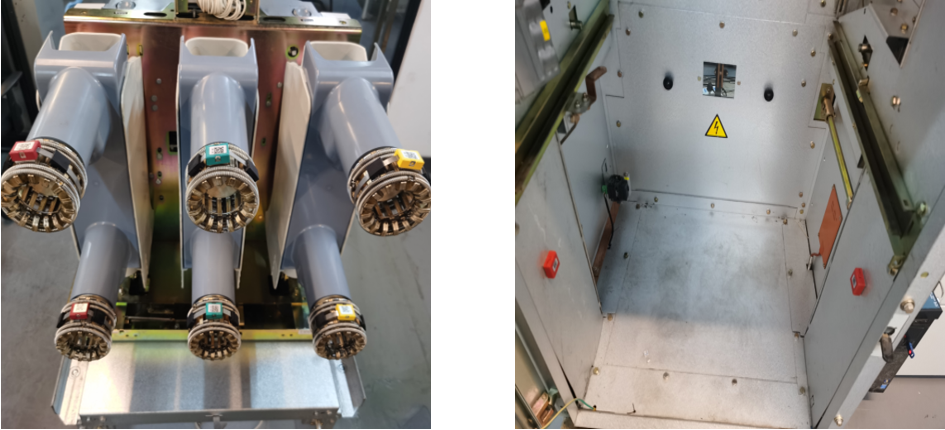

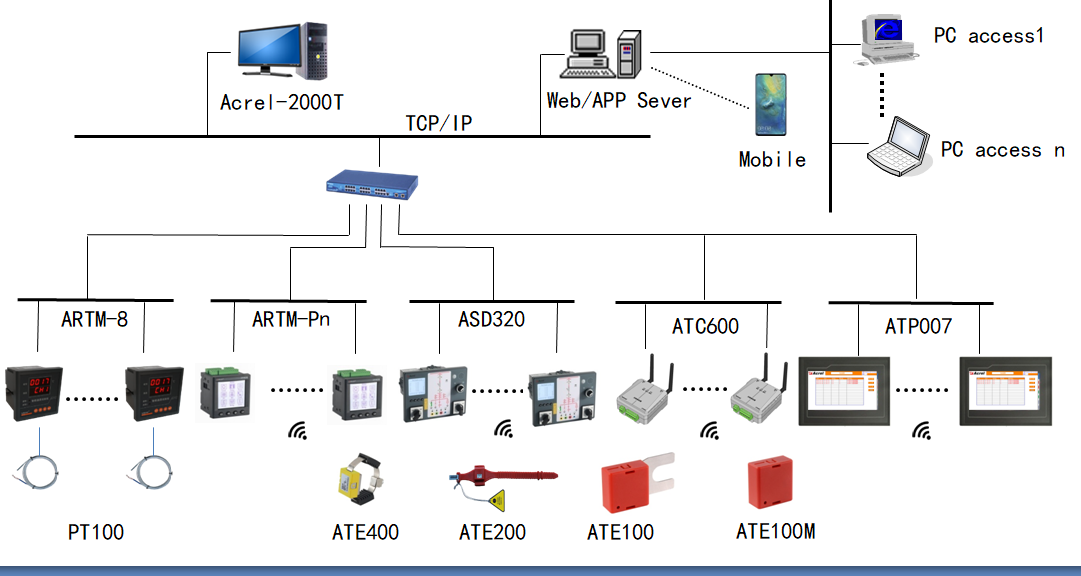

Typical Solution

Выбор продукта

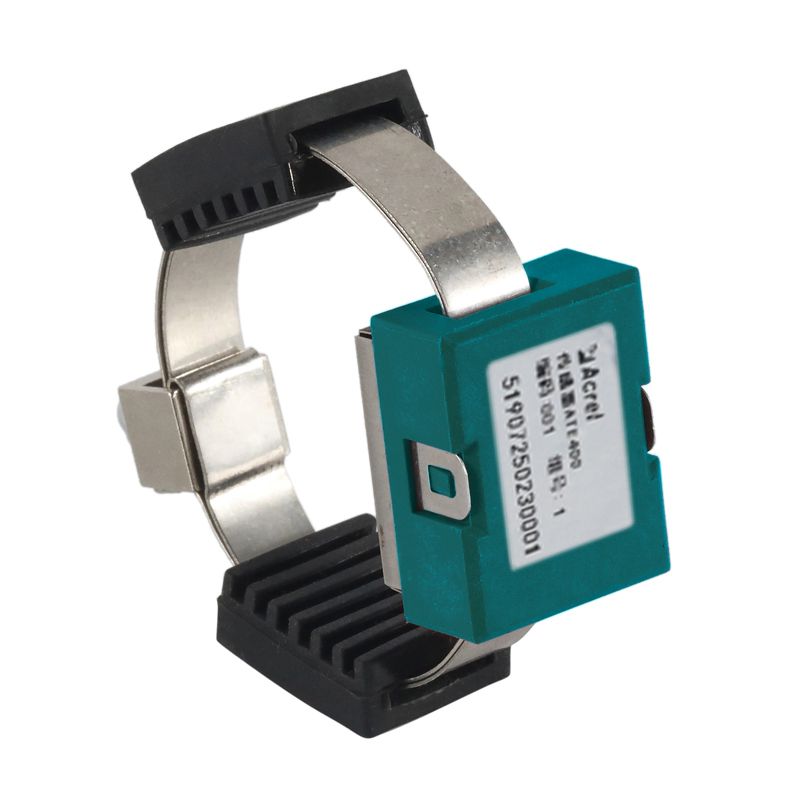

ATE400

● Small size

● Wireless transmit;

● Wireless transmission distance, 150 meters;

● Fase sampling frequency,15s;

● CT-powered, more than 5A starting current;

● Widely temperature measuring range, -40℃~125℃.

ATE200

● Wireless transmit;

● Wireless transmission distance, 150 meters;

● Fase sampling frequency,25s;

● Battery -powered,more than 5 years;

● Widely temperature measuring range, -40℃~125℃.

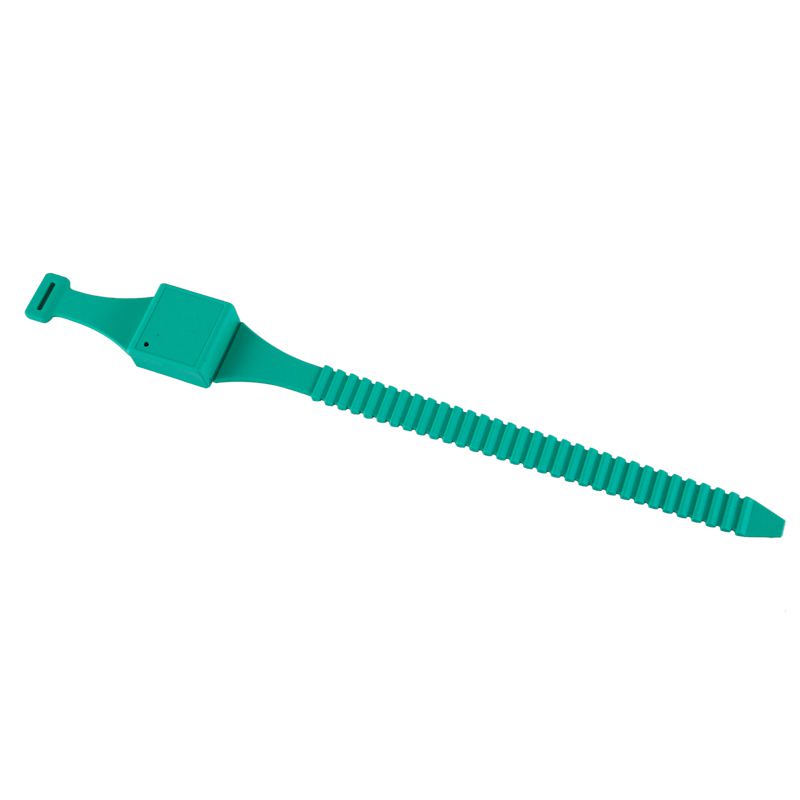

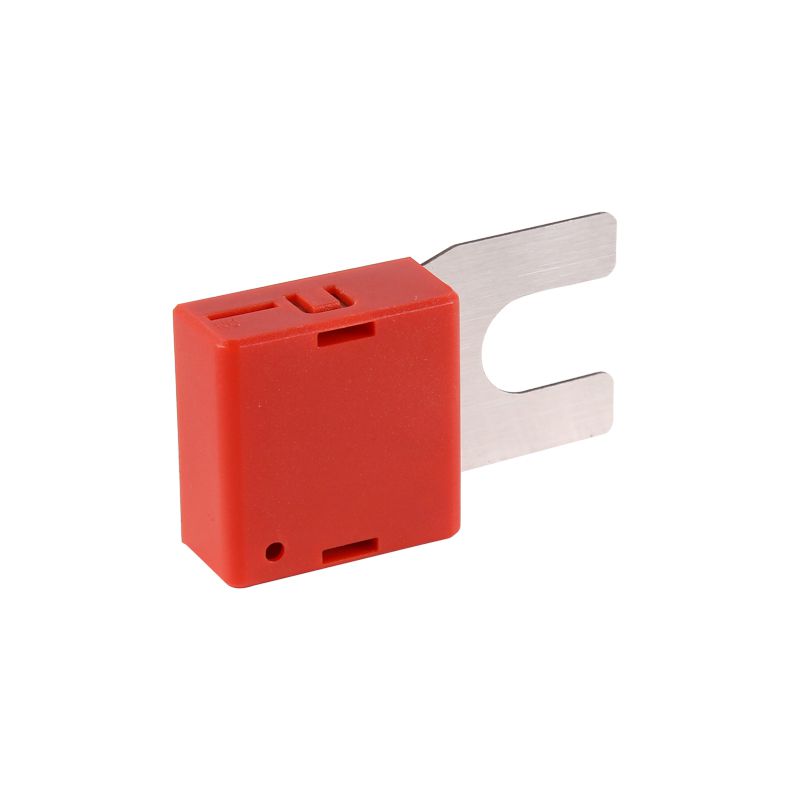

ATE100 wireless temperature sensor

● Wireless transmit,2.4GHz;

● Wireless transmission distance, 10 meters;
● Fast sampling frequency, 25s;
● Battery -powered, more than 5 years;
● Widely temperature measuring range, -40℃~+125℃.
Подробнее

ATE100M

● Wireless transmit

● Wireless transmission distance, 150 meters;
● Fast sampling frequency, 25s;
● Battery -powered, more than 5 years;
● Widely temperature measuring range, -40℃~+125℃.
Подробнее

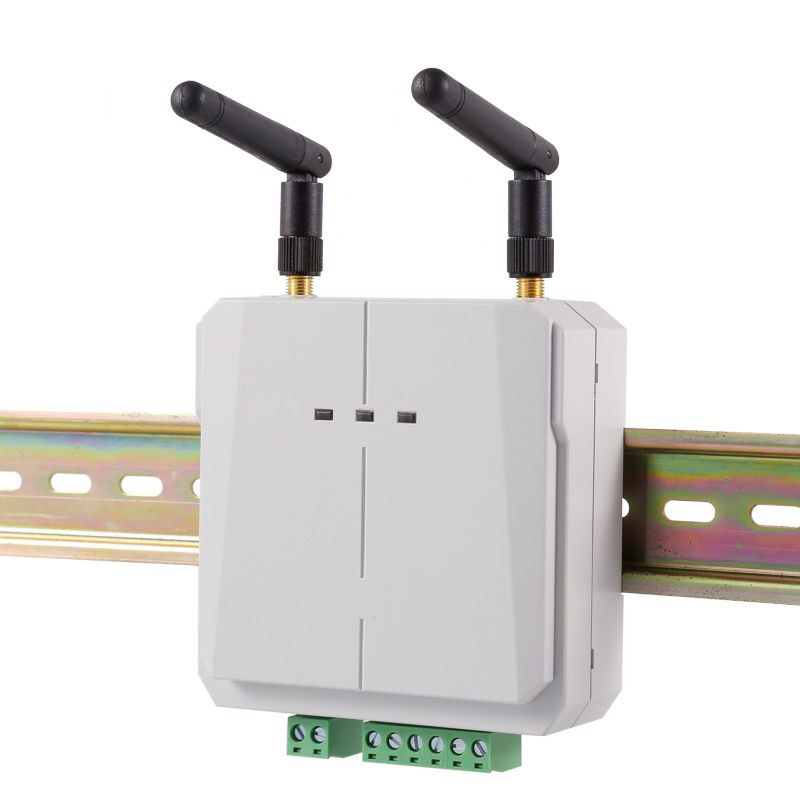

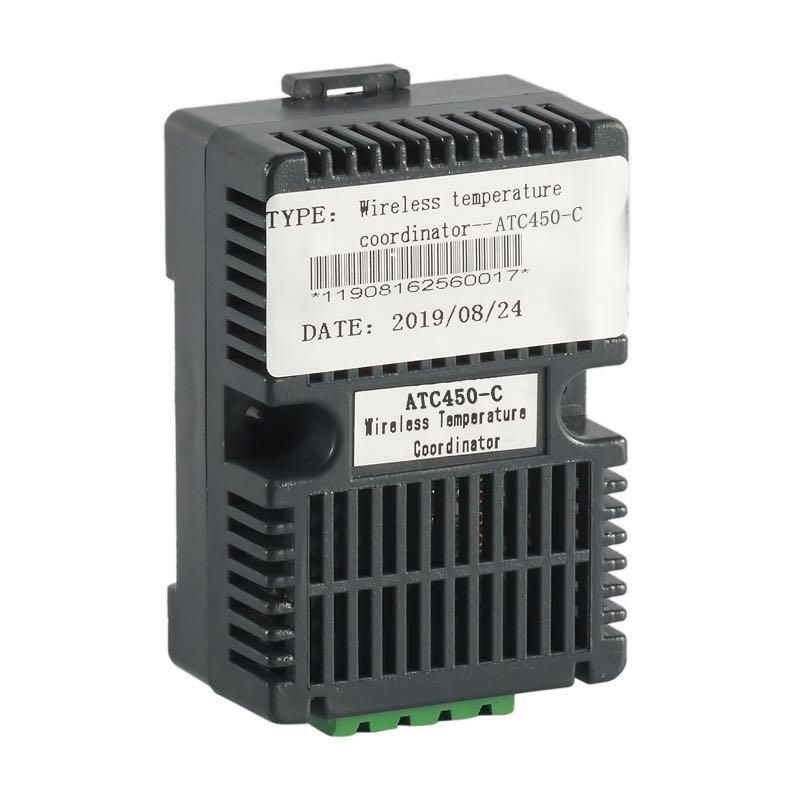

ATC450-C

● Wireless temperature measurement;
● Measuring 60 points;
● 1 RS485 serial communication, Modbus-RTU;
● Power supply adapt with DC24V.

ATC600-C

● Wireless temperature measurement;
● Measuring 240 points;
● 1 RS485 serial communication, Modbus-RTU;

● 2 alarm relays

● Power supply adapt with AC/DC220V, AC/DC110V.
Подробнее

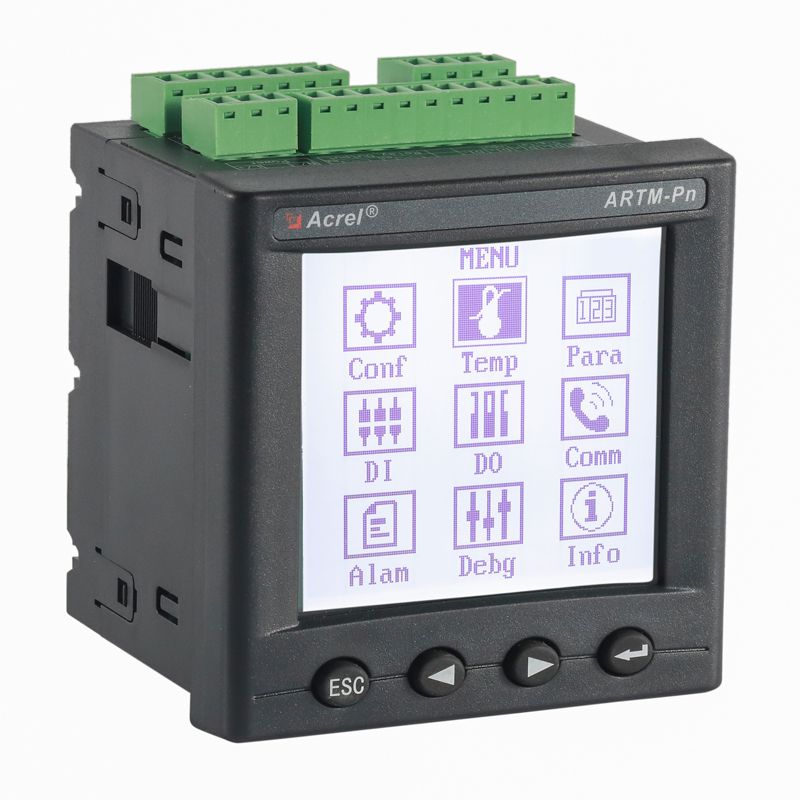

ARTM-Pn wireless temperature measuring equipment

● Wireless temperature measurement, maximum measuring 60 points;

● 4 digital inputs;
● 2 alarm relays;
● LCD display;
● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;
● 1 RS485 serial communication, Modbus-RTU.
Подробнее

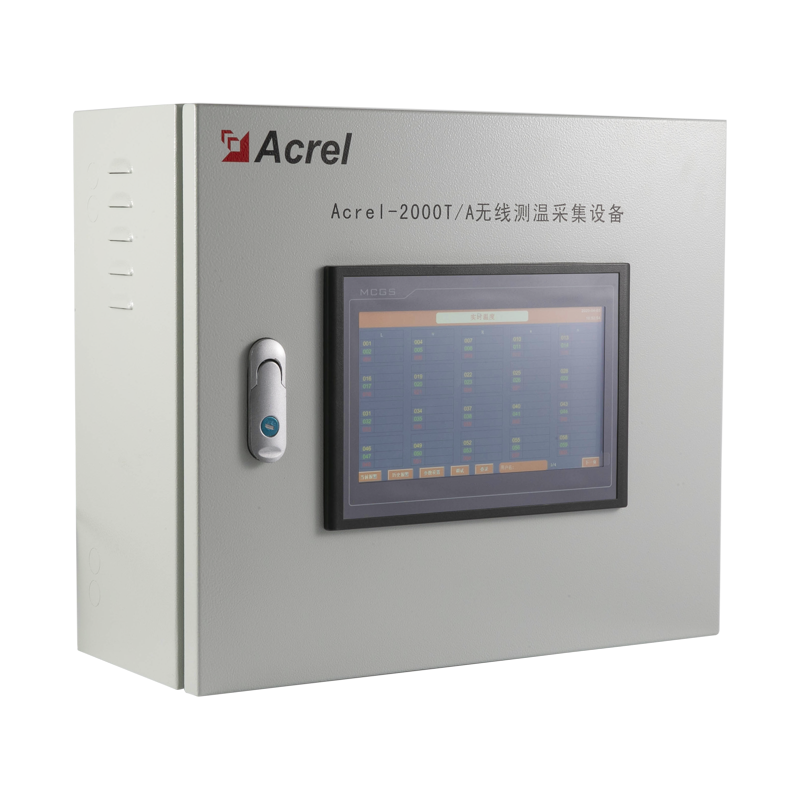

Acrel-2000T/A

● Wireless temperature measurement, 240 points;

● Power supply adapt with AC220V, DC220V, DC110V, AC110V;

● Temperature Curve;

● High temperature alarm, buzzer;

● 1 RS485 serial communication, Modbus-RTU;

● 1 Ethernet communication.
