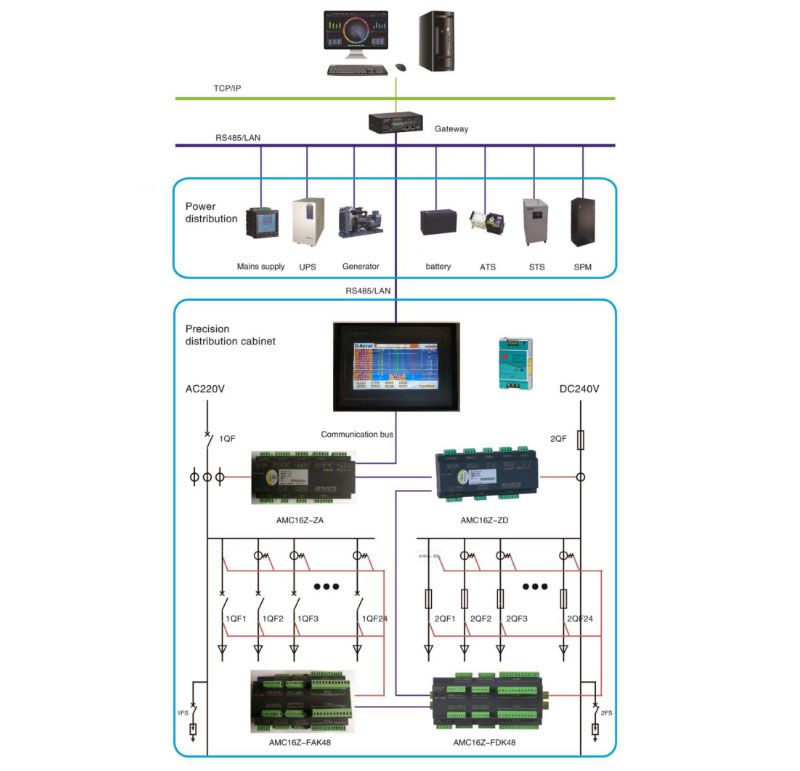

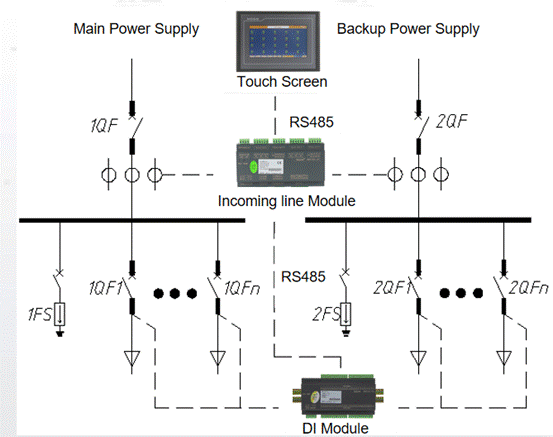

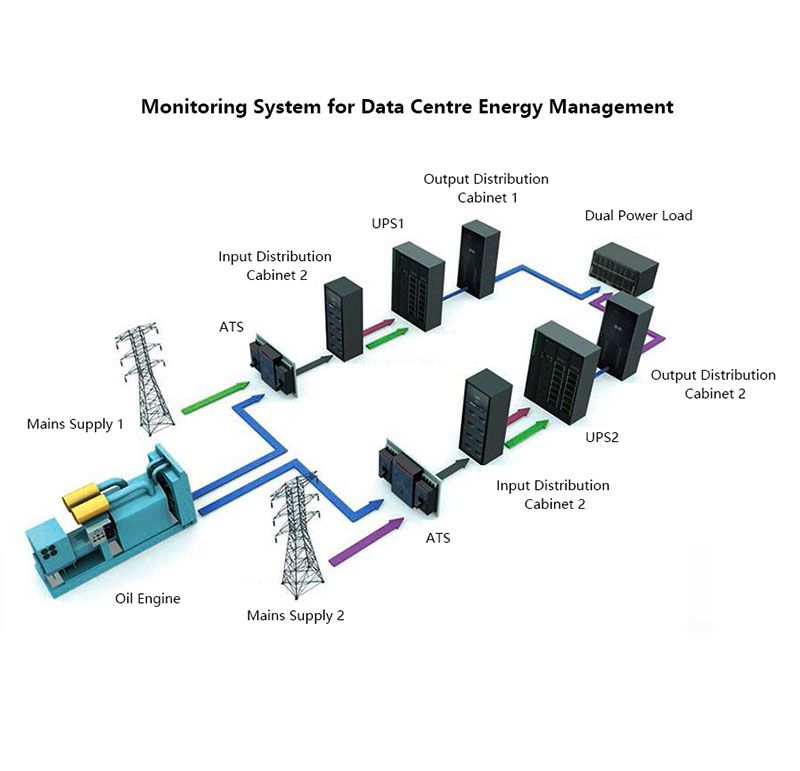

It is necessary to real-time monitor and centralize power consumption in data center and data can be displayed on HMI, and uploaded to the power and environment monitoring system by RS485 on touch screen and realize real-time monitoring of whole power distribution system. At the same time, it can realize energy efficiency analysis to reduce energy consumption.

• Incoming line and outgoing line circuits independent monitoring modules

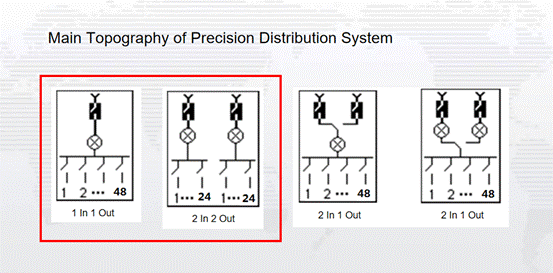

• Can measure up to 2 incoming line circuits and up to 192 outgoing line circuits current,voltage,power,energy and power quality.

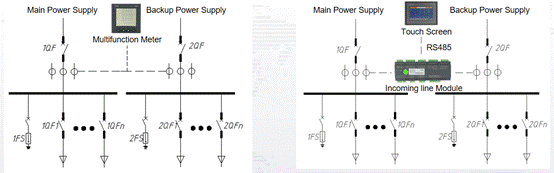

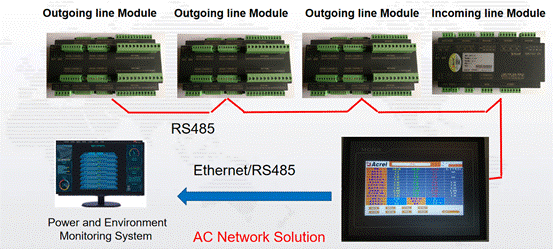

• Data centralized monitoring and display by HMI and data is uploaded to power and environment monitoring system through RS485.

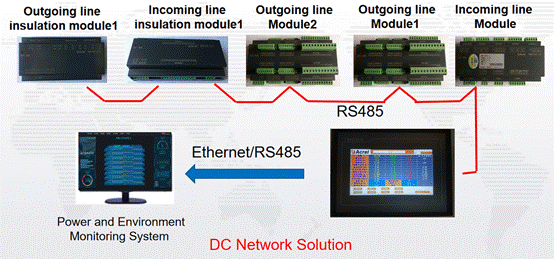

• For high voltage DC 240V or 336V system,insulation monitoring module can be added to monitor ground insulation resistance of main bus.
• DC24V power supply for touch screen and outgoing line monitoring module(power supply from main module output)
• Communication:monitoring device by RS485,touch screen by RS485 or RJ45
• Certificate:CE

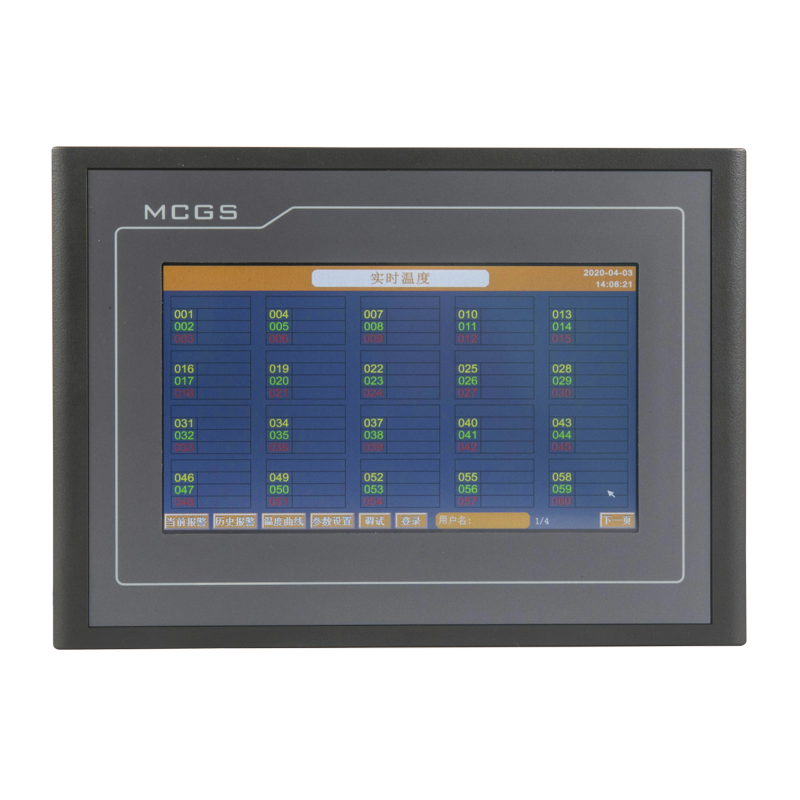

ATP007kt ATP010kt HMI

● 7 or 10 inch touch screen

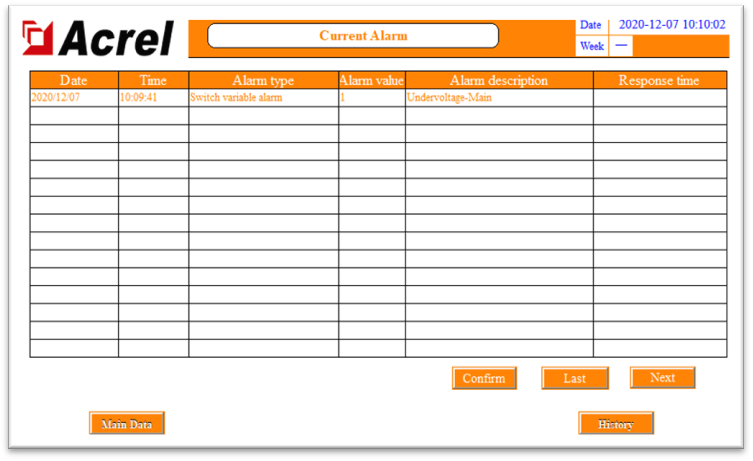

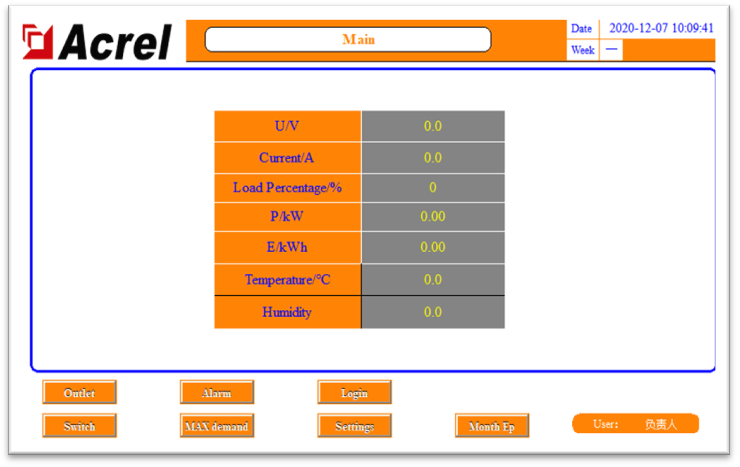

● Real-time monitoring and display voltage,current,power,energy,power quality,switch status,wave curve,etc. of the busbar

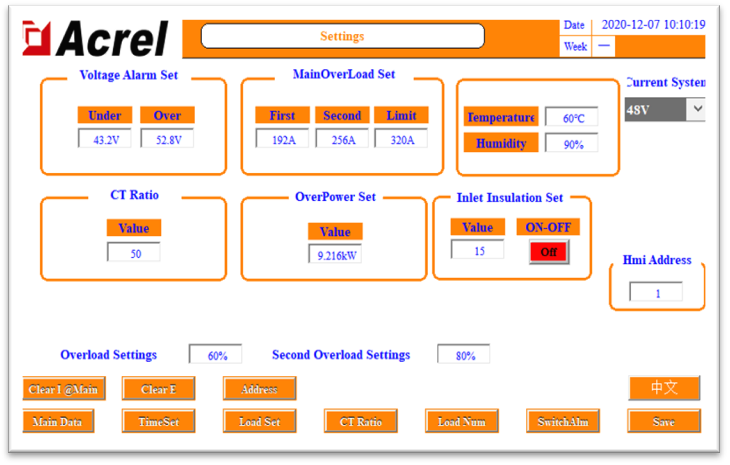

● Monitoring device alarm,communication and other parameters can be configured on the screen.

● 2 RS485 and 1 Ethernet,and data can uploaded by RS485 or RJ45

Подробнее

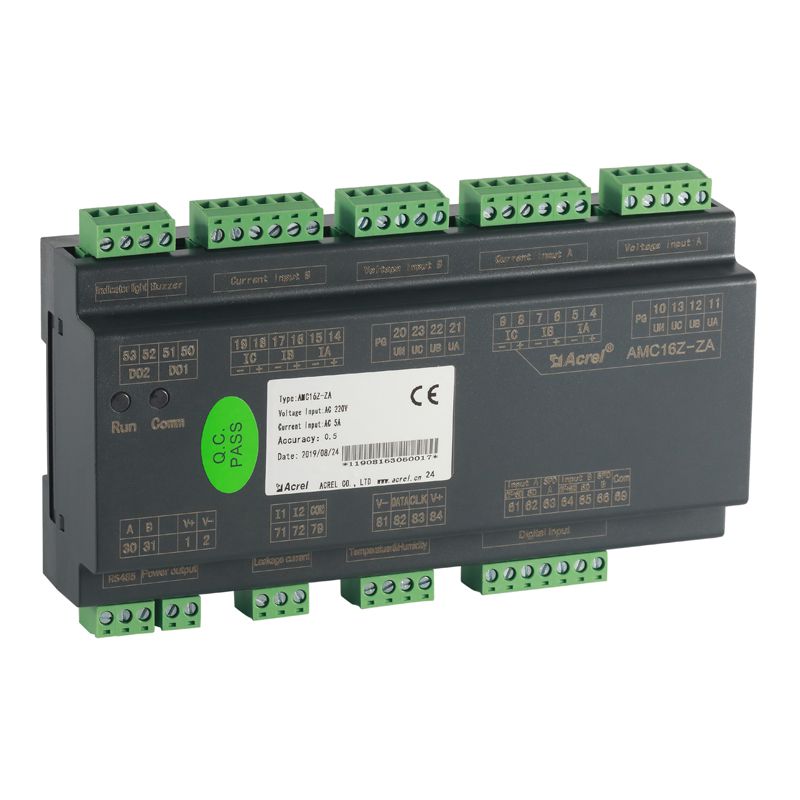

AMC16Z-ZA Data Center Monitor Device

● Designed specifically for the power supply management of server in the data center

● A+B independent 2 channels three-phase inlet

● U, I, P, Q, S, PF, kWh, kvarh

● 2nd-63rd  Harmonic

Подробнее

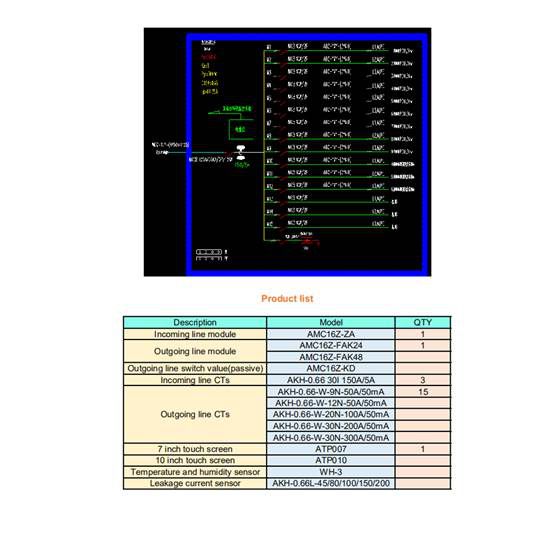

AAMC16Z-FAK48 Data Center Monitor Device

● Designed specifically for the power supply management of server in the data center

● A+B independent 24 circuits（48 in total）

● U, I, P, Q, S, PF, kWh, kvarh

● 2nd-31st  Harmonic

● kWh Class 0.5

● DIN 35 mm

Подробнее

AKH-0.66W

● Current ratio：100A/50mA

● Common Specification: 100A/50mA

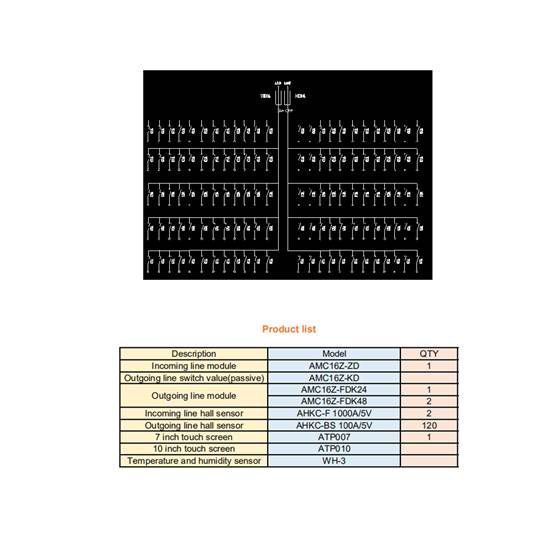

AMC16Z-ZD DC Incoming Line Monitoring Module

● DIN 35mm

● Measurement: A+B independent circuits, 6DI 2DO,1 temp. and humidity.

● With DC 24V output power supply for outgoing line module and touch screen.

● Communication:RS485 modbus RTU

Подробнее

AMC16Z-FDK24 AMC16Z-FDK48 DC Outgoing Line Monitoring Module

● DIN 35mm

● Can measure up to 48 circuits DC outgoing line

● DC24V power supply

● Communication:RS485 modbus RTU

Подробнее

AMC16Z-ZJY DC Incoming Line Insulation Monitoring Module

● DIN 35mm

● Measure A+B independent DC circuit ground insulation resistance of main bus

● DC24V power supply

● Communication:RS485 modbus RTU



AMC16Z-FJY DC Outgoing Line Insulation Monitoring Module

● DIN 35mm

● Measure 24 circuits ground insulation resistance of DC outgoing line

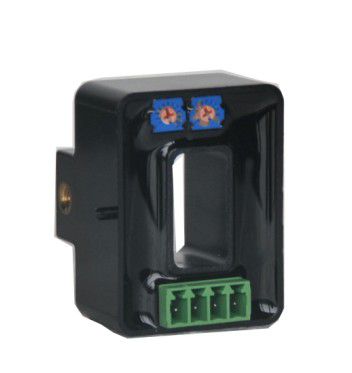

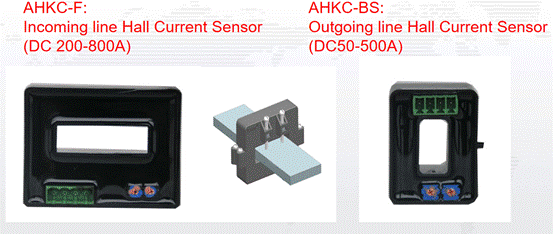

AHKC-BS DC Outgoing Line Hall Effect Current Sensor

● Current ratio：100A/5V

● Common Specification: 100A/5V
