Умное решение для мониторинга автобусных маршрутов
Применение

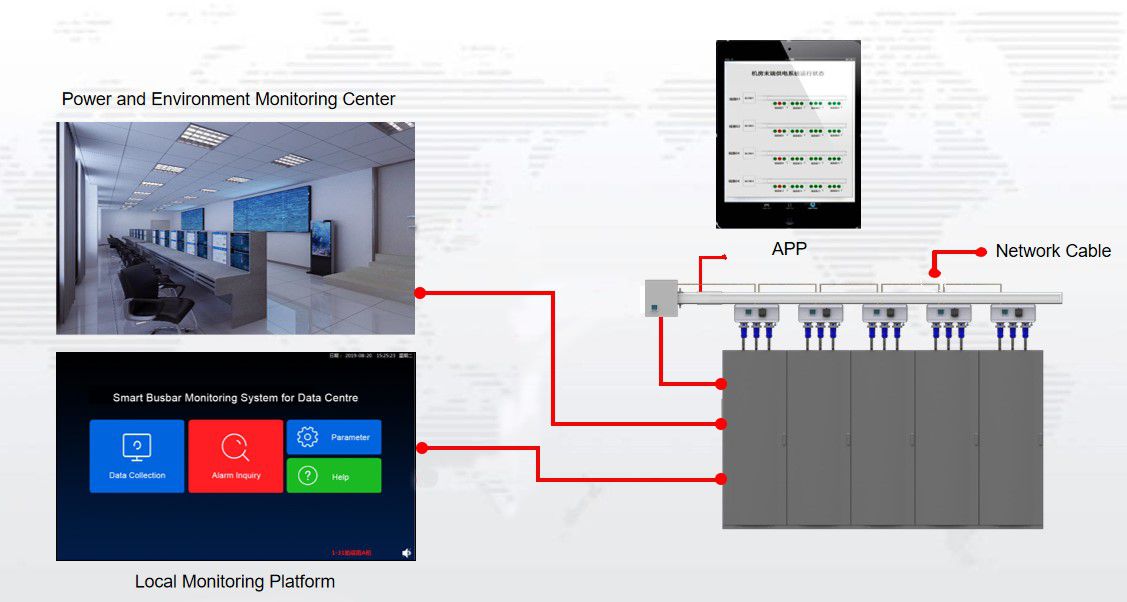

It is necessary to real-time monitor energy consumption and power quality of end load in smart track busway. Data can be uploaded to monitoring system by local touch screen through RS485 and it can realize real-time monitoring of the whole power distribution system. At the same time, it can monitor real-time temperature at the busway connector and plug-in box interface to ensure safe and reliable operation of the busway.

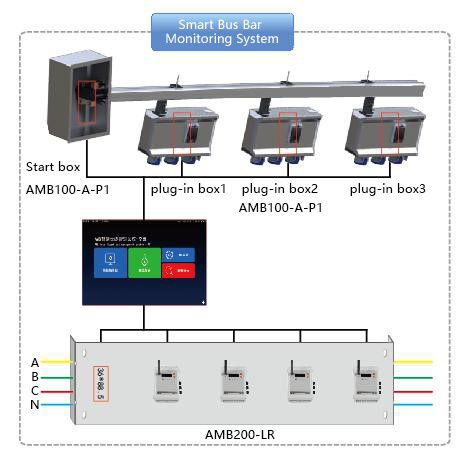

Структура

Основные функции

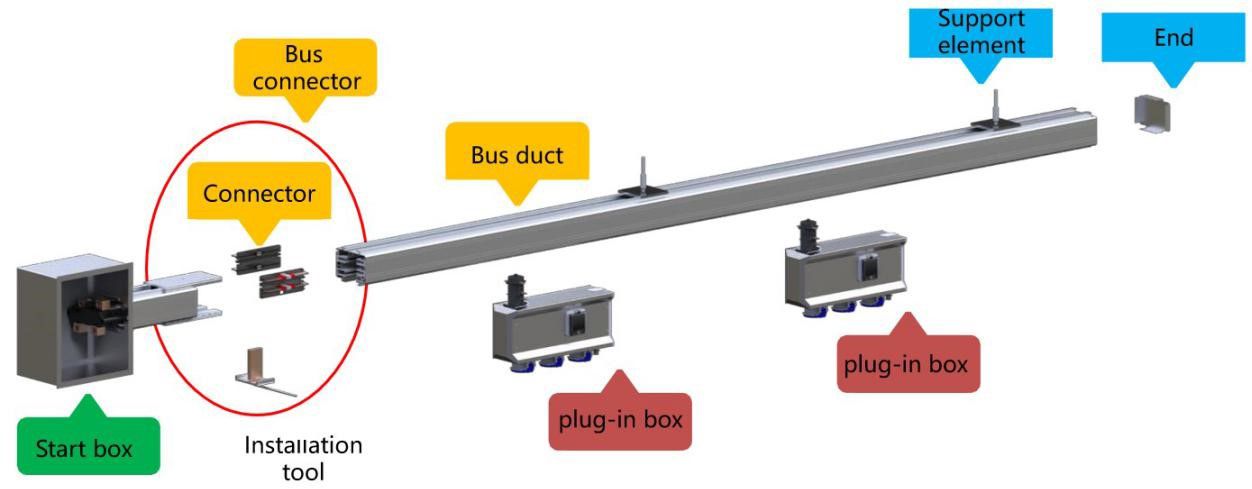

  • AMB100 or AMB110 is usually installed in the busbar start box and plug-in box
  • Measurement: AC or DC busbar voltage, current, harmonics and other parameters.
  • Realize temperature monitoring of the busbar plug interface
  • AMB200 is usually installed at the connector of the dense AC busbar, and can monitor temp. And humidity at the connector.

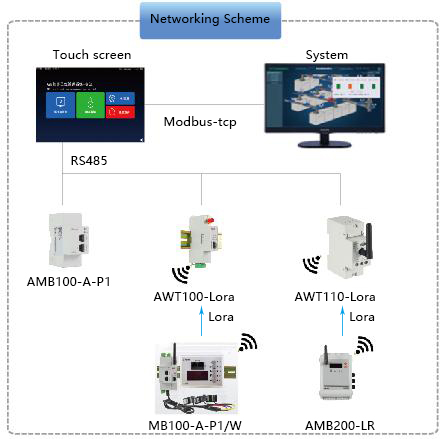

  • Communication: LoRa or RS485

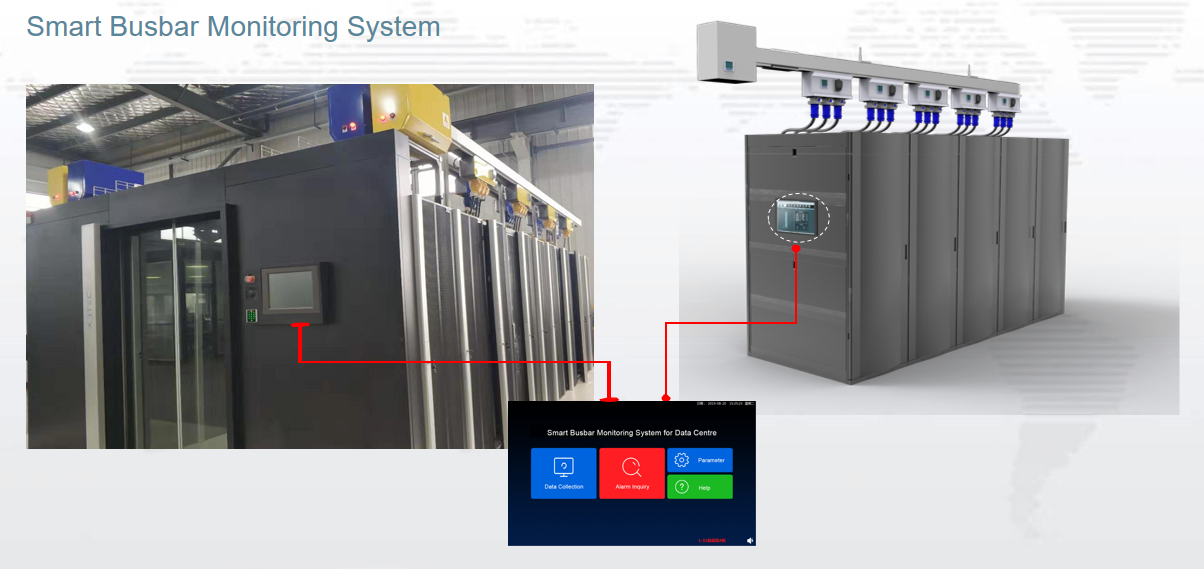

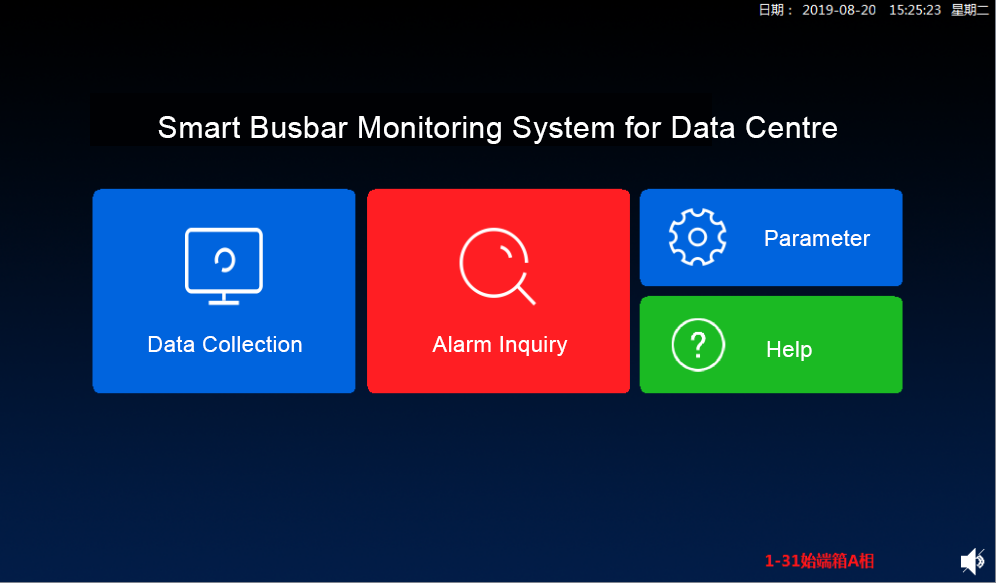

Human Machine Interface

Human Machine Interface

Human Machine Interface

Выбор продукта

ATP010kt HMI

● 10 inch touch screen

● Real-time monitoring and display voltage,current,power,energy,power quality,switch status,wave curve,etc. of the busbar

● Monitoring device alarm,communication and other parameters can be configured on the screen.

● 2 RS485 and 1 Ethernet,and data can uploaded by RS485 or RJ45

Подробнее

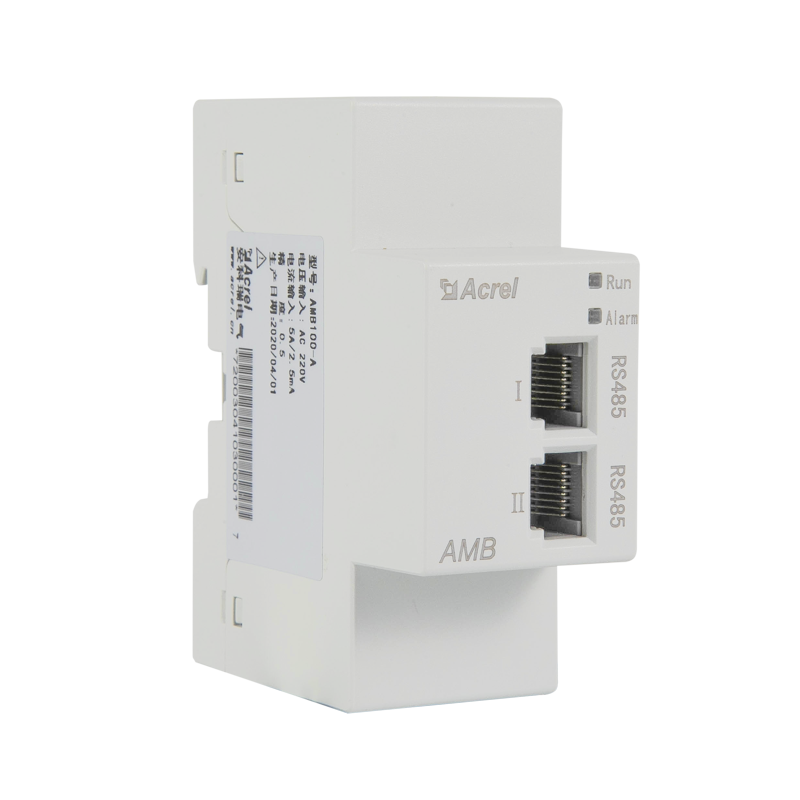

AMB100-A-P1 AC Start Box Monitoring Module

● DIN 35 mm

● Measurement: 3 phase electrical parameters,2DI2DO,8 temp.,1 leakage current,1 temp. and humidity

● Communication: 1 in 1 out type RJ45 interface(Modbus protocol)

AMB110-A-P1 AC Plug-in Box Monitoring Module

● DIN 35 mm

● Measurement: 3 phase electrical parameters,2DI2DO,4 temp.,1 leakage current,1 temp. and humidity

● Communication: 1 in 1 out type RJ45 interface(Modbus protocol)

AMB100-D-P1 DC Start Box Monitoring Module

● DIN 35 mm

● Measurement:1 DC circuit electrical parameters,4DI2DO,8 temp.,1 leakage current,1 temp. and humidity

● ±12V output to power hall current sensor

● Communication: 1 in 1 out type RJ45 interface(Modbus protocol)

AMB110-D-P1 DC Plug-in Box Monitoring Module

● DIN 35 mm

● Measurement:3 DC circuits electrical parameters,4DI2DO,4 temp.,1 leakage current,1 temp. and humidity

● ±12V output to power hall current sensor

● Communication: 1 in 1 out type RJ45 interface(Modbus protocol)

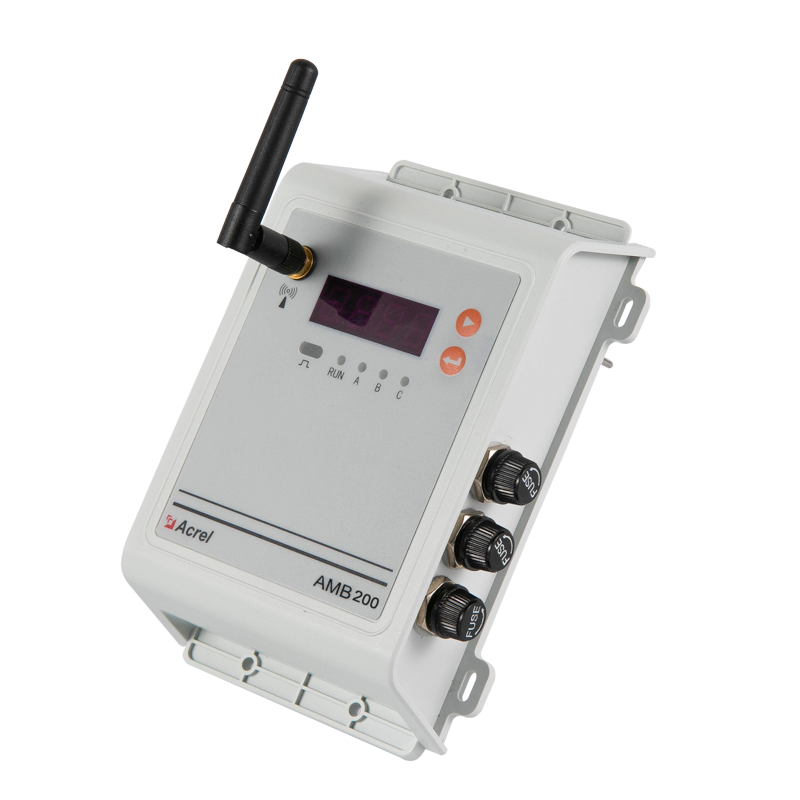

AMB200-LR or AMB200-C AC Bus Connector Temp. Measurement Device

● Installation: Fixed on the cover of the busbar connection

● Contact temp. measurement,measure and display temp. of 4 AC busbars

● Communication:RS485 or LoRa

AHKC-BS DC Outgoing Line Hall Effect Current Sensor

● Current ratio：100A/5V

● Common Specification: 100A/5V
